14Hz Vertical Geophone Sensor With Split Spring Connector
Geophone Sensor Introduction

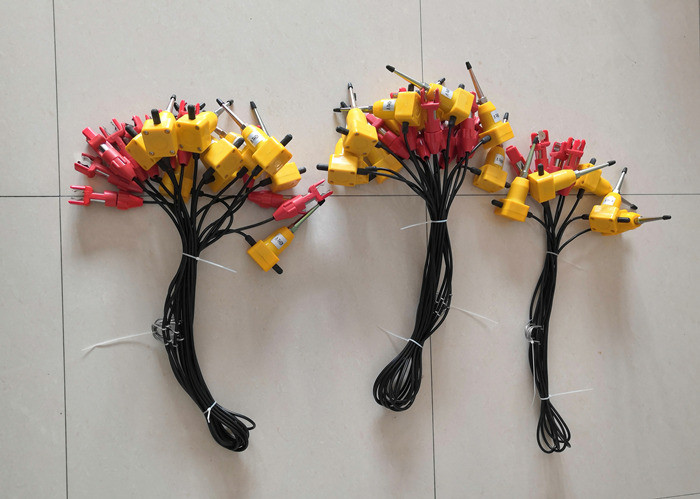

14Hz Vertical Geophone Sensor in land case with spike 75mm, with 1m leader cable,terminated with Split Spring connector.
Geophone Sensor Parameter
| Type | 14Hz Vertical Geophone Sensor With Split Spring Connector |
| Geophone Direction | Vertical Direction / Horizontal Direction |
| Geophone Type | 14Hz |
| Geophone Case | Waterproof Land Case |
| Spike | Steel Spike length75mm |
| Lead-in |
Standard:1mlead-in with O.D.4.6mm Custom Outer Diameter / Lead Distance available |
| Connector Type |
*Mueller Clips *Split Spring Clip *KCK Connector( Male or Female / Push Fit or Lock Ring Type) *Kooter Connector( Male or Female /KCL male or KCL female or KC2L-4 Dual ) *Other Connector Type available |
| Type | EG-14-II |
| Natural Frequency ( Hz ) | 14 Hz ± 5% |
| Coil resistance(Ω) | 375 Ω ± 5% |
| Open Circuit Damping | 0.2 ±5% |
| Damping With Shunt Resistor | 0.6 ± 5% |
| Open Circuit Intrinsic Voltage Sensitivity ( v/m/s ) | 28.8 v/m/s ± 5% |
| Sensitivity With Shunt Resistor ( v/m/s ) | 18.2 v/m/s ± 5% |
| Damping Calibration-Shunt Resistance(Ω) | 640Ω |
| Harmonic distortion ( % ) | ＜0.2% |
| Typical Spurious Frequency (Hz ) | ≧240Hz |
| Moving Mass ( g ) | 11.6g |
| Typical case to coil motion p-p ( mm ) | 2mm |
| Allowable Tilt | ≦20º |
| Operating Temperature Range ( ℃ ) | -40℃ TO +100℃ |
| Height ( mm ) | 32mm |
| Diameter ( mm ) | 25.4mm |
| Weight ( g ) | 74g |
| Warranty Period | 3 years |
