Geophone 4.5Hz Horizontal with Mueller Clips connector
Product Details of Horizontal Geophone
seismometer is a device that converts ground motion (speed) into voltage and records it in a recording station. The measured voltage deviation from the baseline is called the seismic response and its earth structure is analyzed
Parameter of Horizontal Geophone
| Type | Single Geophone 4.5Hz |
| Geophone Direction | Vertical Direction / Horizontal Direction |
| Geophone Type | 4.5Hz |
| Geophone Case | Waterproof Land Case |
| Spike | Steel Spike length75mm |
| Lead-in |
Standard:1mlead-in with O.D.4.6mm |
| Connector Type |
*Mueller Clips |
Features of Horizontal Geophone 4.5Hz
Horizontal Geophone 4.5Hz has stable performance, high fidelity and stable quality in the conventional coal, oil and natural gas exploration industry. Today, horizontal single-component seismic geophone strings have been used in various applications, far from the original applications such as seismic detectors, engineering shocks, and perimeter defense directions.

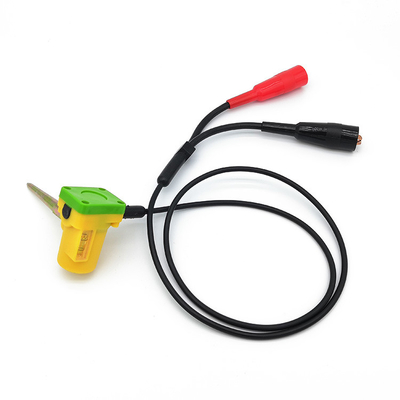

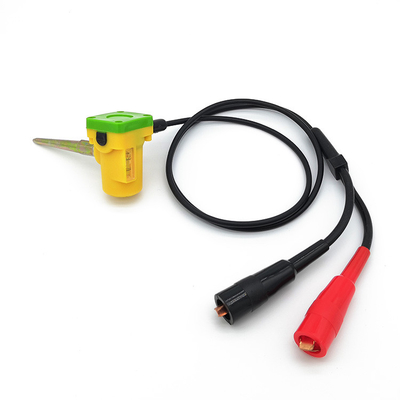

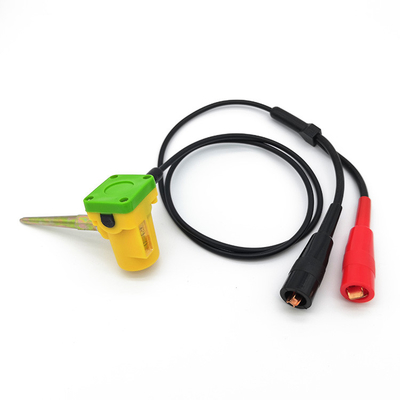

Single geophone 4.5Hz Horizontal in land case with spike 75mm, with 1m leader cable,with one D-Loop , terminated with Mueller clips connector.
| Type | EG-4.5-II |
| Natural Frequency ( Hz ) | 4.5±10% |
| Coil resistance(Ω) | 375±5% |
| Damping | 0.6±5% |
| Open circuit intrinsic voltage sensitivity ( v/m/s ) | 28.8 v/m/s ±5% |
| Harmonic distortion ( % ) | ≦0.2% |
| Typical Spurious Frequency (Hz ) | ≧150Hz |
| Moving Mass ( g ) | 11.3g |
| Typical case to coil motion p-p ( mm ) | 4mm |
| Allowable Tilt | ≦20º |
| Operating Temperature Range ( ℃ ) | -40℃ TO +100℃ |
| Height ( mm ) | 36mm |
| Diameter ( mm ) | 25.4mm |
| Weight ( g ) | 86g |
| Warranty Period | 3years |
All parameters specified here in are rated at a temperature 20℃±2℃ .
