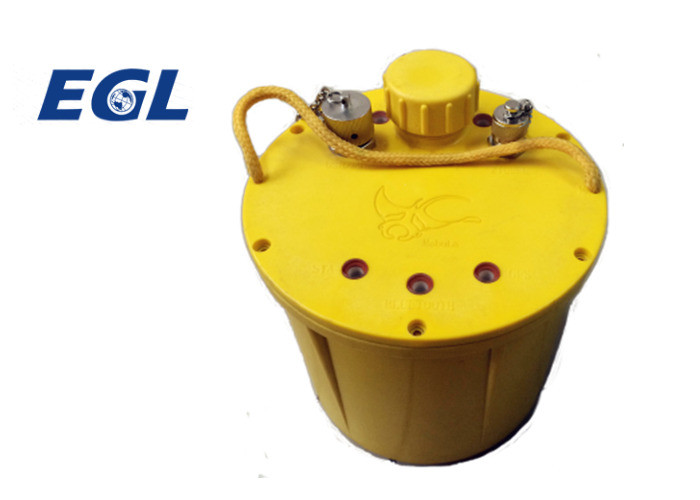

0.5Hz-150 Hz 3 Component Geophone / Digital 3C Geophone EPS-2-M6Q

0.5Hz-150 Hz 3 Component Geophone / Digital 3C Geophone EPS-2-M6Q

  • 0.5Hz-150 Hz 3 Component Geophone / Digital 3C Geophone EPS-2-M6Q
0.5Hz-150 Hz 3 Component Geophone / Digital 3C Geophone EPS-2-M6Q
Product Details:
Place of Origin: China
Brand Name: EGL
Model Number: Digital 3C geophone
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 100 set/month
Contact Now
Detailed Product Description
Product Name: 3 Component Geophone Type: EPS-2-M6Q
Bandwidth: 0.5Hz ~ 150 Hz Status Display: LED
High Light:

3 component string

,

digital 3c geophone

Digital 3C geophone EPS-2-M6Q





Features:
Traditional seismic exploration, seismic station prediction system
Transient multi-spot Rayleigh wave exploration
Civil work quality test
Field long-time tremor measurement
Blasting vibration monitoring



Data sheets of Digital 3C geophone EPS-2-M6Q



Type EPS-2-M6Q
Bandwidth 0.5Hz ~ 150 Hz
Self-noise level The entire frequency band is lower than the NHNM curve; 0.5Hz ~ 1Hz is lower than the NLNM curve;
Time stability 5 × 10-7 s
Number of channels 3-component geophone
Amplitude consistency between channels <5%
Phase difference between channels <0.1ms
Crosstalk suppression between channels >100db
Lateral vibration suppression Better than 0.1%
Power consumption

Autonomous working mode < 0.2w

Bluetooth working mode < 0.3w

Sampling Rate 50, 100, 200, 250, 500, 1000
Lowest parasitic resonance frequency >500Hz
Calibration method Square wave calibration
External power supply 5V~12V, Single power supply (charging)
Status Display LED
Internal GPS & BDS Included
Operating Temperature Range ( ℃ ) -20℃ ~ +55℃
Autonomous working time > 20 days continuous without external power
Dynamic Range >120dB
Storage Capacity 32GB(Pluggable TF card for expansion to 64GB or larger TF card)
Data Format MiniSeed(Can be converted to formats such as SAC)
Interactive interface Bluetooth,USB2.0 and RS232
Water Proof Protection in 1m water depth
Dimensions Φ140mm × 170 mm
Weight 3kg
Warranty Period 1years





0.5Hz-150 Hz 3 Component Geophone / Digital 3C Geophone EPS-2-M6Q 0





                   0.5Hz-150 Hz 3 Component Geophone / Digital 3C Geophone EPS-2-M6Q 1
