Seismic SM4 Geophone 10Hz Vertical Waterproof Land Case OEM Service

Seismic SM4 Geophone 10Hz Vertical Waterproof Land Case OEM Service

  • Seismic SM4 Geophone 10Hz Vertical Waterproof Land Case OEM Service
  • Seismic SM4 Geophone 10Hz Vertical Waterproof Land Case OEM Service
  • Seismic SM4 Geophone 10Hz Vertical Waterproof Land Case OEM Service
Seismic SM4 Geophone 10Hz Vertical Waterproof Land Case OEM Service
Product Details:
Place of Origin: China
Brand Name: EGL
Certification: ISO9001
Model Number: Single SM4 Geophone 10Hz Vertical
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 10000sets/month
Contact Now
Detailed Product Description
Natural Frequency: 10Hz±5% Geophone Case: Vertical Waterproof Land Case
Spike: 75mm Lead-in Cable: 1 M
Cable O.D: 4.6mm Connector Type: Without Connector
High Light:

vertical seismic geophone

,

vertical direction geophone

Seismic SM4 Geophone 10Hz Vertical with 1m leader cable without connector



Type Single SM4 Geophone 10Hz
Geophone Direction Vertical Direction / Horizontal Direction
Geophone Type 10Hz
Geophone Case Waterproof Land Case
Spike Steel Spike length75mm
Lead-in

Standard:1mlead-in with O.D.4.6mm

Custom Outer Diameter / Lead Distance available

Connector Type

*Mueller Clips

*Split Spring Clip

*KCK Connector( Male or Female / Push Fit or Lock Ring Type)

*Kooter Connector( Male or Female /KCL male or KCL female or KC2L-4 Dual )

*Other Connector Type available

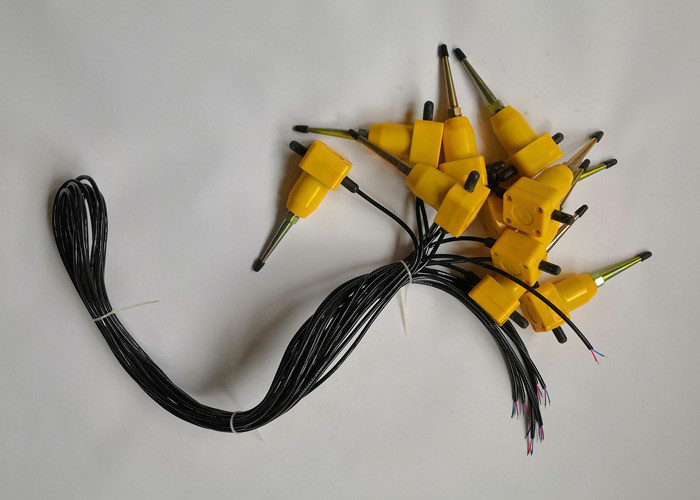

Single SM4 geophone 10Hz Vertical in land case with spike 75mm, with 1m leader cable,terminated without connector.



Seismic SM4 Geophone 10Hz Vertical Waterproof Land Case OEM Service 0



Type EG-10-II (10Hz SM4)
Natural Frequency ( Hz ) 10 ± 5.0%
Coil resistance(Ω) 375 ± 5.0%
Open Circuit Damping 0.271 ± 5.0%
Damping With Shunt Resistor 0.6 ± 5.0%
Open Circuit Intrinsic Voltage Sensitivity( v/m/s ) 28.8 v/m/s ± 5.0%
Sensitivity With Shunt Resistor ( v/m/s ) 22.7 v/m/s ± 5.0%
Damping Calibration-Shunt Resistance (Ω) 1400
Harmonic distortion ( % ) <0.20%
Typical Spurious Frequency (Hz ) ≥240Hz
Moving Mass ( g ) 11.3g
Typical case to coil motion p-p ( mm ) 2.0mm
Allowable Tilt ≤20º
Operating Temperature Range ( ℃ ) -40℃ TO +100℃
Height ( mm ) 32
Diameter ( mm ) 25.4
Weight ( g ) 74
Warranty Period 3 years
