60Hz Vertical Geophone / Vertical Direction Geophone Long Working Life

1 sets
60Hz Vertical Geophone / Vertical Direction Geophone Long Working Life
Features Gallery Product Description Request A Quote
Natural Frequency: 60Hz±5%
Geophone Case: Vertical Waterproof Land Case
Spike: 75mm
Lead-in Cable: 1 M
Cable O.D: 4.6mm
Connector Type: Without Connector
High Light:

vertical seismic geophone


vertical seismic sensor

Basic Infomation
Place of Origin: China
Brand Name: EGL
Certification: ISO9001
Model Number: Geophone 60Hz Vertical
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 10000sets/month
Product Description

Seismic Geophone 60Hz Vertical with 1m leader cable without connector


Type Single Geophone 60Hz
Geophone Direction Vertical Direction / Horizontal Direction
Geophone Type 60Hz
Geophone Case Waterproof Land Case
Spike Steel Spike length75mm

Standard:1mlead-in with O.D.4.6mm

Custom Outer Diameter / Lead Distance available

Connector Type

*Mueller Clips

*Split Spring Clip

*KCK Connector( Male or Female / Push Fit or Lock Ring Type)

*Kooter Connector( Male or Female /KCL male or KCL female or KC2L-4 Dual )

*Other Connector Type available

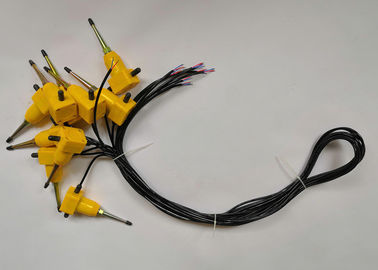

Single geophone 60Hz Vertical in land case with spike 75mm, with 1m leader cable,terminated without connector.


60Hz Vertical Geophone / Vertical Direction Geophone Long Working Life 0


Type EG-60-II
Natural Frequency ( Hz ) 60Hz ± 5%
Coil resistance(Ω) 1450 ± 5%
Open Circuit Damping 0.49 ±5%
Damping With Shunt Resistor 0.573 ± 5%
Open Circuit Intrinsic Voltage Sensitivity ( v/m/s ) 48.0 v/m/s ± 5%
Sensitivity With Shunt Resistor ( v/m/s ) 34.0 v/m/s ± 5%
Damping Calibration-Shunt Resistance (Ω) 3600Ω
Harmonic distortion ( % ) <0.2%
Typical Spurious Frequency (Hz ) ≧300Hz
Moving Mass ( g ) 7.3g
Typical case to coil motion p-p ( mm ) 1.2mm
Allowable Tilt ≦20º
Operating Temperature Range ( ℃ ) -40℃ TO +100℃
Height ( mm ) 32mm
Diameter ( mm ) 26mm
Weight ( g ) 80g
Warranty Period 3 years
