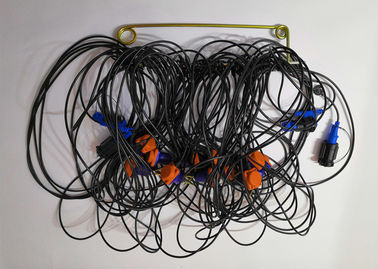

Land geophone string SG10 Geophone 10Hz with SH17-WCR-2M2F Connector
Used for Seismic Data Acquisition System .
Geophone strings, SG10 land strings (4x3) parallel series
Geophone type is land geophone 10Hz SG10.
Geophone connection is 4x3 parallel x series.
Connector type is WPC-2A (male/female water proof) connector
Cable length is 75 meters.
Interval distance is 1.3 meters with one string per carrying hasp with molded D-LOOPS.
| Type | Land Geophone String SG10 Geophone 10Hz |
| Geophone Direction | Vertical Direction |
| Geophone Connection | 12X1,6X2,4X3 optional |
| Geophone Type | SG10 Geophone 10Hz |
| Geophone Case | Waterproof Land Case |
| Spike | Steel Spike length75mm |
| Cable |
Cable O.D.4.6mm,5.33mm,6.4mm and 7.8mm avaiable; Custom Lead-in Length; Custom Geophone Interval Distance |
| Connector Type |
*Split Spring Clips *KCK Connector( Male or Female or Dual / Push Fit or Lock Ring Type) *SH17-WCR-2M2F Connector *5515 Connector (Male or Female or Dual /Push Fit or Screw Fit ) * KCL Connector(KCL male or KCL female or KC2L-4 Dual ) *Other Connector Type available |
If you need other configuration, Cable Length, Interval, Connector, please contact us.
| Type | SG10 Geophone |
| Natural frequency ( Hz ) | 10Hz±2.5% |
| Open circuit damping | 0.68±5% |
| Sensitivity (v/m/s) | 22.8±2.5% |
| Coil Resistance (ohm) | 350±3.5% |
| Harmonic Distortion ( % ) | ＜0.075 |
| Typical Spurious Frequency ( Hz ) | ＞240 |
| Moving Mass ( g ) | 8.4 |
| Max.coil excursion p-p (mm) | 1.78 |
| Max.tilt angle | 15º |
| Element Diameter (mm) | 27.4 |
| Element Height (mm) | 30.15 |
| Element Weight (g) | 78 |
| Operating Temperature(℃) | -40℃ to +100℃ |
