| Place of Origin: | China |
| Brand Name: | EGL |
| Certification: | ISO9001 |
| Model Number: | Water-Proof Connector-C |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |
| Connector Type: | Water-Proof Connector-C | Contact Resistance: | ≤3mΩ |
|---|---|---|---|
| Working Depth: | 30 M | Operation Temperature: | -40℃~+70℃ |
| High Light: | waterproof wire connectors,water resistant electrical connectors |
||

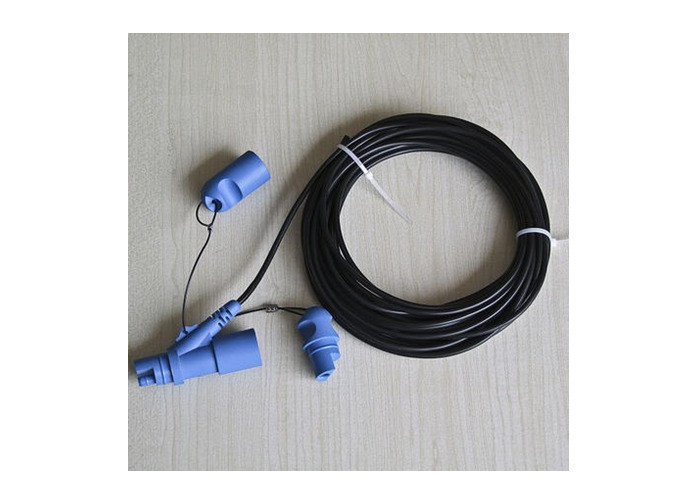

Water-Proof Connector-C
Product name: water-proof connector C
Product features:
High quality materials
Excellent injection molding
Lasting touch security
Lasting elasticity: contact pin and receptacle are made of alloy steel through one-off molding and this guarantees the strength of elasticity
Reliable water proof and antisepsis: the special molding technology for contact pin and receptacle secures the stickiness, all parts of touch needle use advanced gold-plating and nickel-plating technology, and it is environmental antiseptic.
Technical data
| Connector Type | YT Series Water-Proof Connector C |
| Separate power of single needle | 3N≤F≤4N |
| Numbers of Coupling / Uncoupling | ≥1500 |
| Contact resistance | ≤3mΩ |
| Insulation resistance | ≥500MΩ |
| Working Depth | 30M |
| Operation Temperature | -40℃~+70℃ |
