Natural Seismic Survey 2Hz 3 Component Geophone

Natural Seismic Survey 2Hz 3 Component Geophone

  • Natural Seismic Survey 2Hz 3 Component Geophone
  • Natural Seismic Survey 2Hz 3 Component Geophone
  • Natural Seismic Survey 2Hz 3 Component Geophone
  • Natural Seismic Survey 2Hz 3 Component Geophone
Natural Seismic Survey 2Hz 3 Component Geophone
Product Details:
Place of Origin: China
Brand Name: EGL
Certification: ISO9001
Model Number: 3C Geophone 2Hz
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 100sets/month
Contact Now
Detailed Product Description
Name: 2Hz±10% Low Cost 3 Component Geophone Of Rock Layer Natural Frequency: 2Hz±10%
Sensitivity/G (v/cm.s-1): 2±10% Coil Resistance/ Rc(Ω): 6040±5%
Internal Resistance/ R(Ω): 5800±5% Damping Coefficient Bt: 0.7±10%
Harmonic Distortion D ( % ): ≦0.2 Color: Red
High Light:

2Hz 3 Component Geophone

,

Seismic Survey 3 Component Geophone

,

2Hz 3c geophone

Used for Natural seismic survey 2Hz±10% Low cost 3 Component Geophone of Rock Layer



Features of 3 Component Geophone



Good parameter consistency, firm structure, good sealing, light weight, separate output of each detector signal, high sensitivity, low distortion, reasonable damping coefficient, high resolution,  Widely used in public facilities (bridges, railway tunnels) safety monitoring, advanced forecasting, etc.It can provide 1Hz to 100Hz vertical and horizontal frequencies, as well as three-component geophones composed of geophones, borehole geophones, tomographic imaging geophones series, with stable performance, high fidelity and in petroleum , Stable quality in natural gas exploration and other areas



Product application of 3 Component Geophone



1.1~3Hz geophone, used for deep seismic exploration, natural seismic monitoring and prediction, impulse and microseismic measurement of bridges and highways, etc.

2.4~100 Hz, widely used in seismic exploration in petroleum, coal, metallurgy, national defense engineering and other fields.
High sensitivity, small deformation, reasonable damping coefficient, good linear response, good parameter consistency, high resolution, and good waterproof performance.

3.Small size, easy to install, easy to operate, large ambient temperature range, can meet the needs of multi-wave component seismic data acquisition technology



parameter of 3 Component Geophone



Type 3C Geophone 2Hz, 3D Geophone 2Hz
Geophone Direction

Vertical Geophone Element(1unit) /

Horizontal Geophone Element(2units)

Geophone Type 2Hz   EG-2-I
Geophone Case Metal Case
Spike Screw Spikes(3units)
Connecting Cable

Standard: Connecting cable 10 m length with

O.D.6.4mm,7 cores. Connecting connectors

between 3C geophone and connecting cable

are provided and equipped separately.

The other side of connecting cable is kept

open or equipped with custom connector

as per client’s requirements.

Connector Type

As per client’s requirements.





Data sheets of geophone 2Hz



Type EG-2-I
Natural Frequency ( Hz ) 2±10%
Sensitivity/G (v/cm.s-1) 2±10%
Coil Resistance/ Rc(Ω) 6040±5%
Internal Resistance/ R(Ω) 5800±5%
Damping Coefficient Bt 0.7±10%
Harmonic Distortion D ( % ) ≦0.2
Insulating Resistance Ri (MΩ) ≧20
Coil’s Maximum Displacement /P-P (mm) 3
Suspension Mass(g) 60
Element Diameter (mm) 38.5
Element Height (mm) 47
Element Weight (g) 250
Working Temperature(℃) -25℃ to +55℃

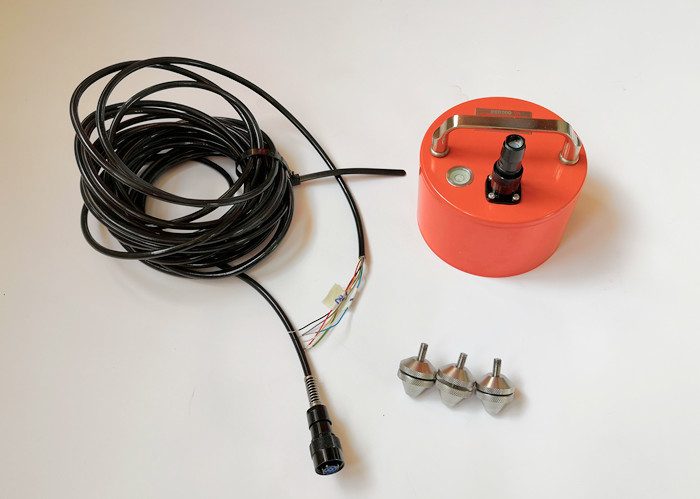

3C Geophone 2Hz, 3D Geophone 2Hz with connetion cable

All parameters specified here in are rated at a temperature 20℃±2℃



Features of 3 Component Geophone



1. The structure of double coil and rotating coil can eliminate external magnetic field interference and lateral impact force well;
2. Adopt high-strength spring for omnidirectional use;
3. Using optimized design, it has the advantages of simple structure, high firmness and wide frequency range



Natural Seismic Survey 2Hz 3 Component Geophone 0
