20DX Geophone10Hz Vertical In Marsh Case Terminated With KCK Screw Fit Male Connector

20DX Geophone10Hz Vertical In Marsh Case Terminated With KCK Screw Fit Male Connector

  • 20DX Geophone10Hz Vertical In Marsh Case Terminated With KCK Screw Fit Male Connector
  • 20DX Geophone10Hz Vertical In Marsh Case Terminated With KCK Screw Fit Male Connector
  • 20DX Geophone10Hz Vertical In Marsh Case Terminated With KCK Screw Fit Male Connector
  • 20DX Geophone10Hz Vertical In Marsh Case Terminated With KCK Screw Fit Male Connector
20DX Geophone10Hz Vertical In Marsh Case Terminated With KCK Screw Fit Male Connector
Product Details:
Place of Origin: China
Brand Name: EGL
Certification: ISO9001
Model Number: EG-10-IV (20DX equivalent)
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 1000sets/month
Contact Now
Detailed Product Description
Frequency: 10Hz Sensitivity: 28 V/m/s
Case: Marsh Case Lead-in Cable: 1 M
Coil Resistance: 395 Ohm Connector Type: KCK Screw Fit Male Connector
High Light:

EG-10-IV Seismic Geophone

,

10HZ Seismic Geophone

,

20DX geophone sensor

Product Description

20DX geophone10Hz Vertical in Marsh Case terminated with KCK Screw Fit Male Connector



The 20DX geophone 10hz (EG-10-IV) is a conventional double-lead spring geophone with small error in operating parameters and stable and reliable performance. The structure is reasonable in design, small in size and light in weight, and is suitable for seismic exploration of strata and geological environments of different depths. Its rugged design with pigtail construction ensures relability and data integrity in field conditions. Industry standard for cost effectiveness, quality and reliability.

Its rugged design with pigtail construction ensures relability and data integrity in field conditions. Industry standard for cost effectiveness, quality and reliability.

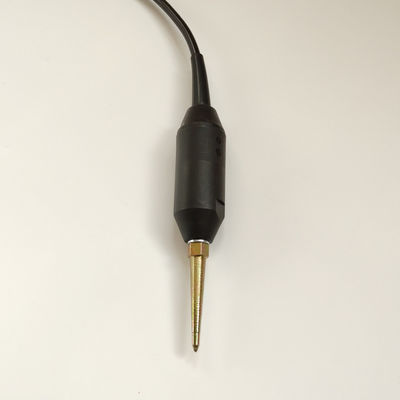

Single 20DX geophone10Hz Vertical in marsh case, with 2 meters leader cable and terminated with KCK Screw Fit Male Connector.

20DX Geophone10Hz Vertical In Marsh Case Terminated With KCK Screw Fit Male Connector 0

20DX Geophone10Hz Vertical In Marsh Case Terminated With KCK Screw Fit Male Connector 1

20DX Geophone10Hz Vertical In Marsh Case Terminated With KCK Screw Fit Male Connector 2

20DX Geophone10Hz Vertical In Marsh Case Terminated With KCK Screw Fit Male Connector 3

20DX Geophone10Hz Vertical In Marsh Case Terminated With KCK Screw Fit Male Connector 4







GS 20DX Geophone 10Hz Response Curve
20DX Geophone10Hz Vertical In Marsh Case Terminated With KCK Screw Fit Male Connector 5
Specification
All parameters specified here in are rated at a temperature 20℃±2℃ .
Type
EG-10-IV (GS-20DX equivalent)
Natural frequency ( Hz )
10±5%
Open circuit damping
0.3
Damping with calibration shunt
0.70±5%
Calibration shunt resistance(ohm)
1000
Open circuit sensitivity (v/m/s)
28
Sensitivity with calibration shunt(v/m/s)
20±5%
Coil Resistance (ohm)
395±5%
Harmonic Distortion ( % )
≦0.2
Typical Spurious Frequency ( Hz )
≧200
Moving Mass ( g )
11
Max.coil excursion p-p (mm)
1.5
Max.tilt angle
20º
Element Diameter (mm)
25.4
Element Height (mm)
33
Element Weight (g)
87
Operating Temperature(℃)
-40℃ to +80℃





Company Profile
20DX Geophone10Hz Vertical In Marsh Case Terminated With KCK Screw Fit Male Connector 6
20DX Geophone10Hz Vertical In Marsh Case Terminated With KCK Screw Fit Male Connector 7
20DX Geophone10Hz Vertical In Marsh Case Terminated With KCK Screw Fit Male Connector 8
20DX Geophone10Hz Vertical In Marsh Case Terminated With KCK Screw Fit Male Connector 9
Tcherb Inc ( EGL) is a professional geophone supplier which located in China, with the aim to integrate separated resources and supply our clients with all around Geophone / Geophysical Products and related services. All the founding partners of EGL have experiences of over 20 years' in the field of Geophone production / Geophysical services with education background of PHD, Master or Geophysics Undergraduate Degree. We are a professional supplier for Geophysical Equipment, Geological Instrument and related Cables, Spare Parts, such as ( but not limited to) geophone sensor, three component geophone, single seismic geophone, geophone string, hydrophone, geophysical connector & plug, seismic cable, telemetry cable, resistivity cable, cable take-outs. All the products supplied by EGL are strictly produced as per Quantity Control System ISO9001:2008, API Specification Q1 and HSE. EGL also provide global logistics solution for every shipment including transportation by Sea, by Air and by Courier Express. During the past years, EGL has established stable business relationship with our Clients in US, Canada, Colombia, Chile, Peru, Brazil, UK, Germany, Saudi Arabia, UAE, Pakistan, India, Indonesia, Australia.
Packing & Delivery
20DX Geophone10Hz Vertical In Marsh Case Terminated With KCK Screw Fit Male Connector 10
Shipment
DHL ,UPS , FedEx , By Air , By Sea
MOQ
1 set
Advantage
Fast shipping
Package
Packed by carton
Payment
Bank Transfer, Paypal, Western Union, Alibaba Pay
