Seismic Geophone 4.5Hz Vertical with Mueller clips connector
Seismic Geophone 4.5Hz Vertical with Mueller clips connector with 1m leader cable
| Type | Single Geophone 4.5Hz |
| Geophone Direction | Vertical Direction / Horizontal Direction |
| Geophone Type | 4.5Hz |
| Geophone Case | Waterproof Land Case |
| Spike | Steel Spike length75mm |
| Lead-in |
Standard:1mlead-in with O.D.4.6mm Custom Outer Diameter / Lead Distance available |
| Connector Type |
*Mueller Clips *Split Spring Clip *KCK Connector( Male or Female / Push Fit or Lock Ring Type) *Kooter Connector( Male or Female /KCL male or KCL female or KC2L-4 Dual ) *Other Connector Type available |

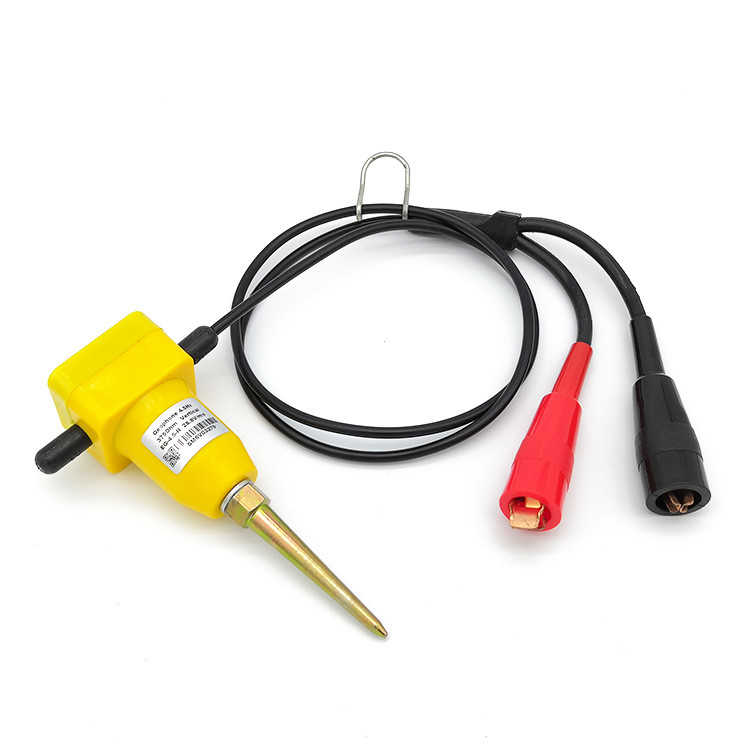

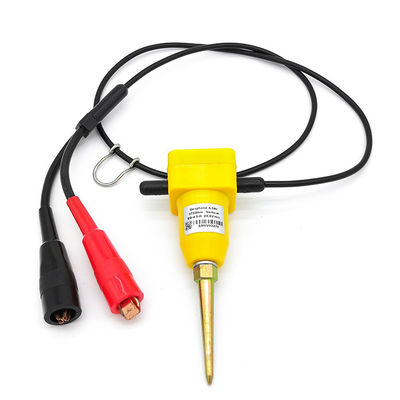

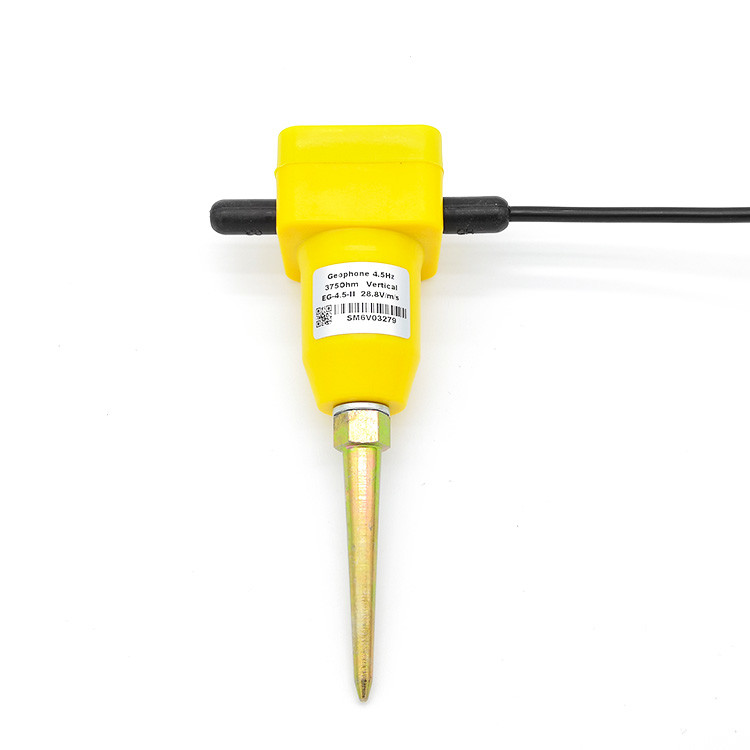

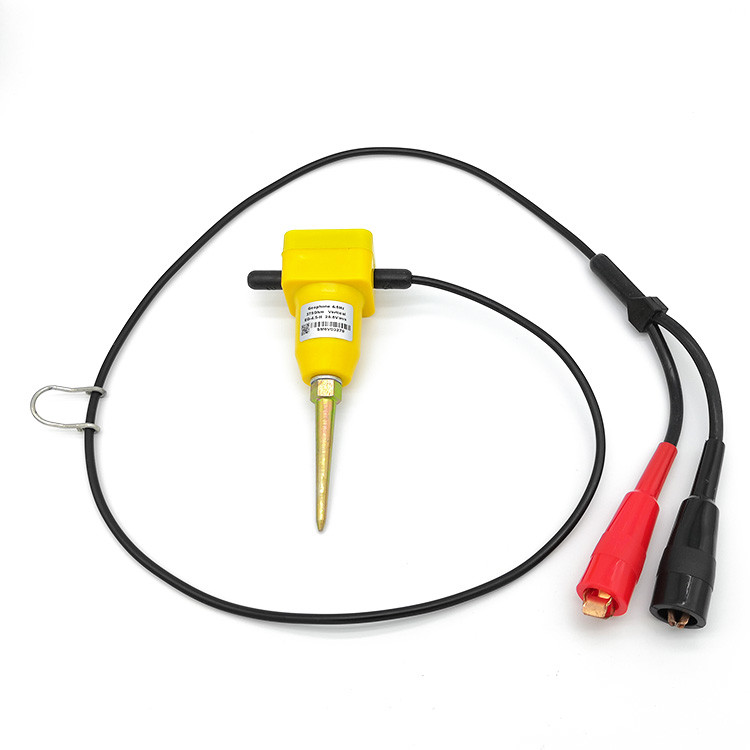

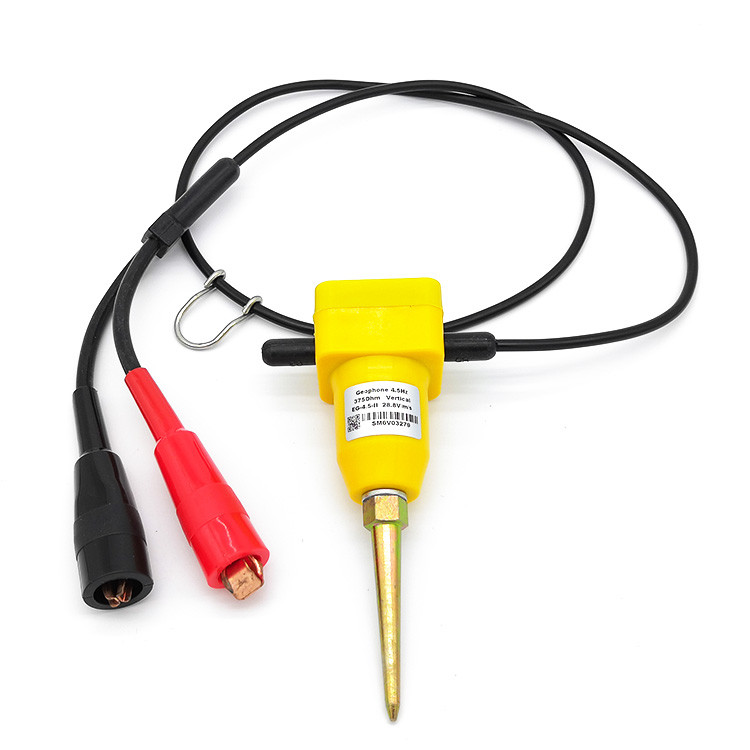

Single geophone 4.5Hz Vertical in land case with spike 75mm, with 1m leader cable,with one D-Loop , terminated with Mueller clips connector.
| Type | EG-4.5-II |
| Natural Frequency ( Hz ) | 4.5±10% |
| Coil resistance(Ω) | 375±5% |
| Damping | 0.6±5% |
| Open circuit intrinsic voltage sensitivity ( v/m/s ) | 28.8 v/m/s ±5% |
| Harmonic distortion ( % ) | ≦0.2% |
| Typical Spurious Frequency (Hz ) | ≧150Hz |
| Moving Mass ( g ) | 11.3g |
| Typical case to coil motion p-p ( mm ) | 4mm |
| Allowable Tilt | ≦20º |
| Operating Temperature Range ( ℃ ) | -40℃ TO +100℃ |
| Height ( mm ) | 36mm |
| Diameter ( mm ) | 25.4mm |
| Weight ( g ) | 86g |
| Warranty Period | 3years |
All parameters specified here in are rated at a temperature 20℃±2℃ .
| Shipment | DHL ,UPS , FedEx , By Air , By Sea | |
| By Express | By Air | By Sea |
| Suitable for under 50kgs Fast 5 - 7 work days High cost Door to door service Easy to pick up the goods |
Suitable for more than 50kgs Fast 5 - 7 work days High cost Airport to Airport Professional broker needed |
Suitable for more than 500kgs Slow 20 - 35 days Low cost Port to Port Professional broker needed |
| MOQ | 1 set | |
| Advantage | Fast shipping | |
| Package | Packed by carton | |
| Payment | Bank Transfer, Paypal, Western Union, Alibaba Pay | |
