High Sensitivity Geophone 4.5Hz Horizontal, Sensitivity 100V/m/s

Product Details:

Place of Origin:	China
Brand Name:	EGL
Certification:	ISO9001
Model Number:	EG-4.5-HS-I

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	10 work days
Payment Terms:	T/T, PayPal，Credit card, Western Union
Supply Ability:	1000 pcs/month

Contact Now

Detailed Product Description

Frequency:	4.5Hz	Sensitivity:	100 V/m/s
Coil Resistance:	3800Ω	Direction:	Horizontal
Diameter:	25.4 Mm	Height:	36 Mm
High Light:	Horizontal Geophone 4.5Hz , 100V/M/S Geophone 4.5Hz , EG-4.5-HS-I

Product Description

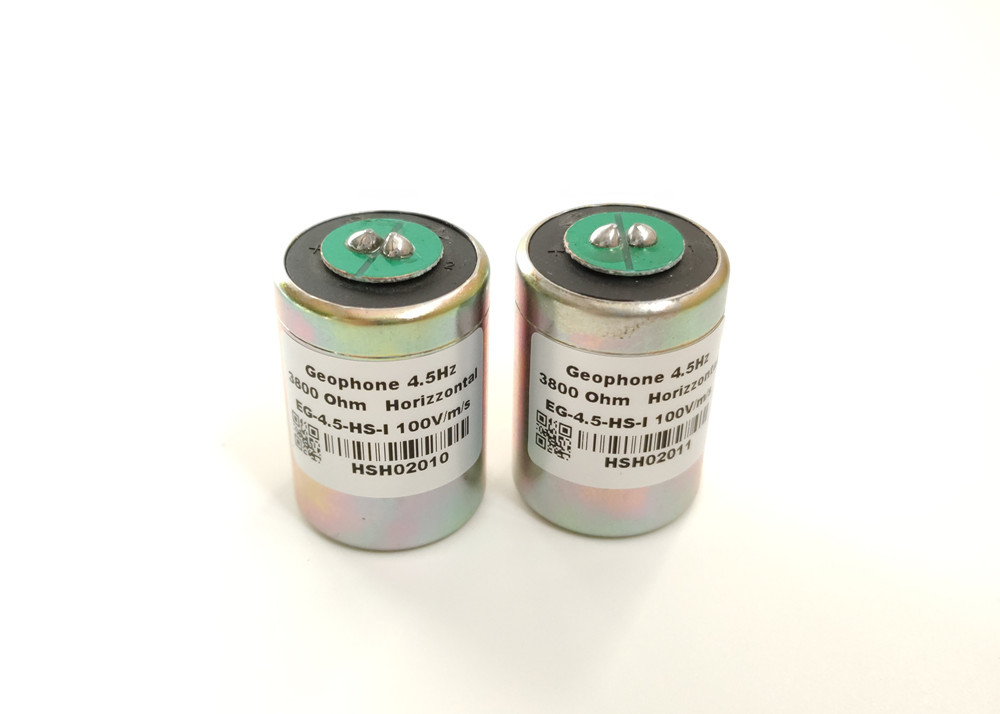

High sensitivity geophone 4.5Hz Horizontal, Sensitivity 100V/m/s, EG-4.5-HS-I geophone sensor 4.5 Hz

The High Sensitivity geophone is used to receive the weak deep and low frequency signal. This kind of geophone has following characters: Low frequency, Low distortion and high sensitivity.

It’s suitable for field single point data acquisition.
It can be used as single point and also 3- component.

High sensitivity geophone 4.5Hz Response Curve

Specification

All parameters specified here in are rated at a temperature 20℃±2℃ .

Type	EG-4.5-HS-I
Nature Frequency Hz	4.5Hz ±10%
Typical spurious frequency (Hz)	≥90Hz
Distortion	≤0.9%
Opening Circuit Damping	0.6±10%
Coil resistance(ohm)	3800±5%
Sensitivity	100±5% V/m/s
Moving Mass g	11.8g
Max. Coil excursion p.p (mm)	4mm
Diameter	25.4mm
Height	36mm
Weight	81g
Operating Temperature Range	-40℃ to +70℃
Limited Warranty Period	1 year

Company Profile

EGL is a professional geophone supplier which located in China, with the aim to integrate separated resources and supply our clients with all around Geophone / Geophysical Products and related services. All the founding partners of EGL have experiences of over 20 years' in the field of Geophone production / Geophysical services with education background of PHD, Master or Geophysics Undergraduate Degree. We are a professional supplier for Geophysical Equipment, Geological Instrument and related Cables, Spare Parts, such as ( but not limited to) geophone sensor, three component geophone, single seismic geophone, geophone string, hydrophone, geophysical connector & plug, seismic cable, telemetry cable, resistivity cable, cable take-outs. All the products supplied by EGL are strictly produced as per Quantity Control System ISO9001:2008, API Specification Q1 and HSE. EGL also provide global logistics solution for every shipment including transportation by Sea, by Air and by Courier Express. During the past years, EGL has established stable business relationship with our Clients in US, Canada, Colombia, Chile, Peru, Brazil, UK, Germany, Saudi Arabia, UAE, Pakistan, India, Indonesia, Australia.

Packing & Delivery

Shipment	DHL ,UPS , FedEx , By Air , By Sea
MOQ	1 set
Advantage	Fast shipping
Package	Packed by carton
Payment	Bank Transfer, Paypal, Western Union, Alibaba Pay
