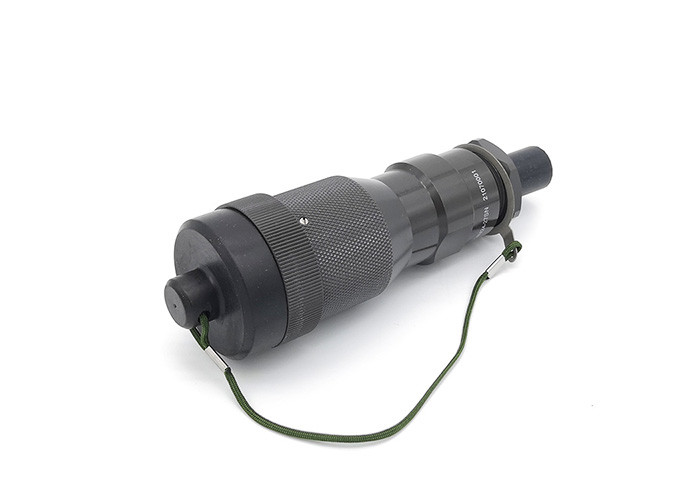

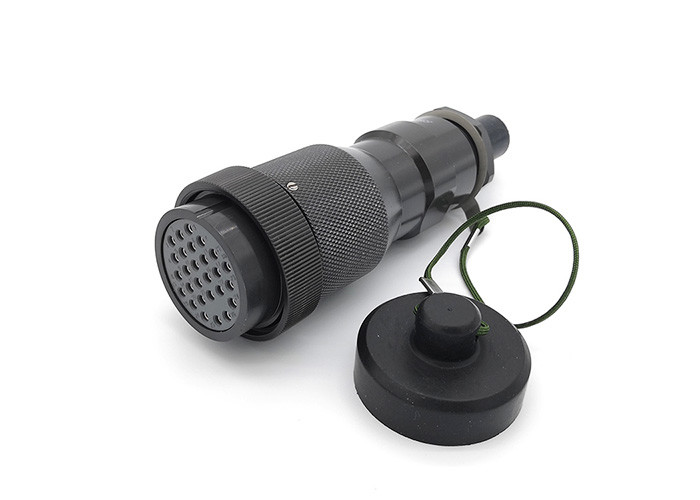

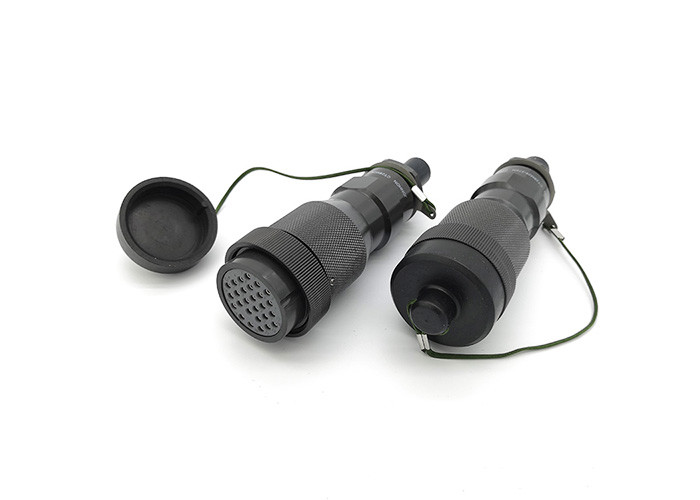

NK27 Female connectors is a Seismic refraction cable connector used for 12 Channels Seismic Cable, available with multiple size cable boots from 6.5mm to 12.0mm OD, mostly commonly used cabe boot is 8.3mm OD.
Characteristic
- Rigid Alloy Body provides excellent impact protection.
- Water resistant.
- Easily field maintenance.
- Gold plated pin & socket for high conductivity.
- Compatible with all engineering seismographs,i.e. Geometrics Geode, Strata Visor, SUMMIT, PASI GEO 24.
- Unique cable anchor ensures both anti-rotational movement and high push-strength.
- Fitted with Dust Cap.
- Operating Temperature: -40ºC to +70ºC.
| Type | Seismic Cable |
| Number of Channel | 12-channels /24-channels |
| Optional | |

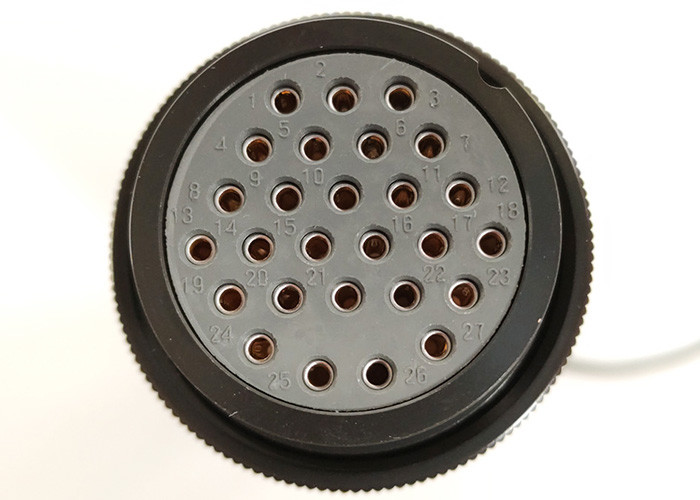

| Connector Type | 27-pin connector/ |
| 50-pin connector/ | |
| 55-pin connector/ | |
| 61-pin connector/ | |
| Optional | |
| Cable O.D | 7.2mm(27cores)/9.2mm(51cores) |
| Take-out | Split Spring Clip Take-out Molded Type/ |
| Split Spring Take-out Ordinary Type/ | |
| Mueller Take-out/ | |
| Kooter Take-out/ | |
| KCK Take-out/ | |
| Optional | |
| Lead-in | Custom Lead-in Length |
| Interval | Custom Interval Distance |
| Working Temperature | -40℃~+70℃ |
