24 Channels Seismic Cable with Mueller Clip Take-out 61 pin (24-61S) Female Connecter

1 set
MOQ
Negotiable
Price

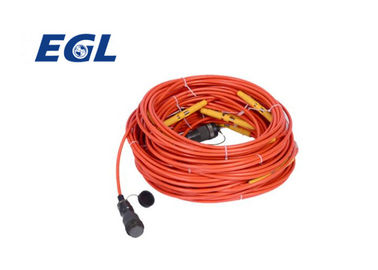

24 Channels Seismic Cable with Mueller Clip Take-out 61 pin  (24-61S) Female Connecter
Features Gallery Product Description Request A Quote
Features
Specifications
Number Of Channel: 24 Channels
Connector Type: 61pin Bendix (PTO6A-24-61S)
Take-out: 24 Mueller Clip Take-out
Interval: 5M Or Custom Interval Distance
Lead-in Cable: 10M Or Custom Lead-in Length
Working Temperature: -40℃~+70℃
High Light:

refraction seismic cable

,

seismic spread cable

Basic Infomation
Place of Origin: China
Brand Name: EGL
Certification: ISO9001
Model Number: 24 Channels Seismic Refrection Cable
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 1000set/month
Product Description

24 Channels Seismic Cable with Mueller Clip Take-out 61 pin (24-61S) Female Connecter



24 Channels seismic refraction cable, with 24 pcs Mueller Clip Take-out, Interval 5 meters , lead in cable 10 meters at both end and terminated with 61 pin (24-61S) female connecter. Total seismic cable length 135 Meters .​



Used for Geode, Summit, PASI, DAQ Seismic Data Acquisition System;



Standard Configuration: 135M Length, 24 Take-out, 5M Interval, Lead in 10M both end, PTO6A-24-61S Connector at both End.



If you need other configuration, Cable Length, Interval, Surface Connector, Take-out, please contact us.

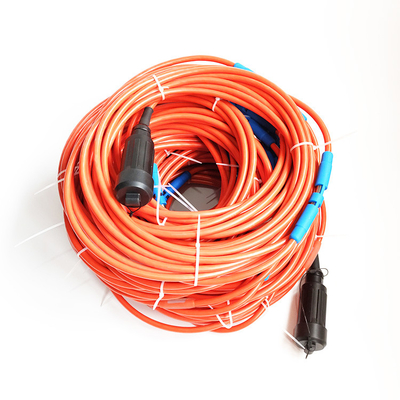

24 Channels Seismic Cable with Mueller Clip Take-out 61 pin  (24-61S) Female Connecter 0

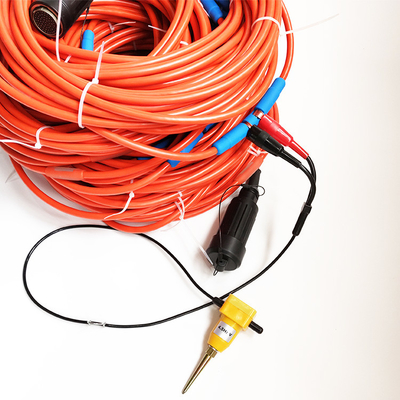

24 Channels Seismic Cable with Mueller Clip Take-out 61 pin  (24-61S) Female Connecter 1



24 Channels Seismic Cable with Mueller Clip Take-out 61 pin  (24-61S) Female Connecter 2



Company Profile
Three Component Geophone 4.5Hz Without Connector Triaxial Geophone 4.5 Hz 3
Three Component Geophone 4.5Hz Without Connector Triaxial Geophone 4.5 Hz 4
Three Component Geophone 4.5Hz Without Connector Triaxial Geophone 4.5 Hz 5
EGL is a professional geophone supplier which located in China, with the aim to integrate separated resources and supply our clients with all around Geophone / Geophysical Products and related services. All the founding partners of EGL have experiences of over 20 years' in the field of Geophone production / Geophysical services with education background of PHD, Master or Geophysics Undergraduate Degree. We are a professional supplier for Geophysical Equipment, Geological Instrument and related Cables, Spare Parts, such as ( but not limited to) geophone sensor, three component geophone, single seismic geophone, geophone string, hydrophone, geophysical connector & plug, seismic cable, telemetry cable, resistivity cable, cable take-outs. All the products supplied by EGL are strictly produced as per Quantity Control System ISO9001:2008, API Specification Q1 and HSE. EGL also provide global logistics solution for every shipment including transportation by Sea, by Air and by Courier Express. During the past years, EGL has established stable business relationship with our Clients in US, Canada, Colombia, Chile, Peru, Brazil, UK, Germany, Saudi Arabia, UAE, Pakistan, India, Indonesia, Australia.
