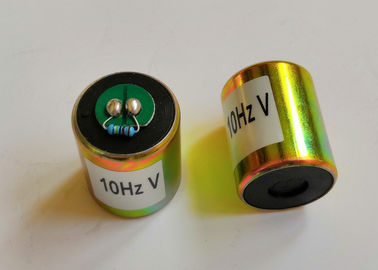

GS-32CT Vertical Geophone 10Hz Operating Temperature Range -40℃-100℃

GS-32CT Vertical Geophone 10Hz Operating Temperature Range -40℃-100℃

  • GS-32CT Vertical Geophone 10Hz Operating Temperature Range -40℃-100℃
  • GS-32CT Vertical Geophone 10Hz Operating Temperature Range -40℃-100℃
  • GS-32CT Vertical Geophone 10Hz Operating Temperature Range -40℃-100℃
  • GS-32CT Vertical Geophone 10Hz Operating Temperature Range -40℃-100℃
  • GS-32CT Vertical Geophone 10Hz Operating Temperature Range -40℃-100℃
GS-32CT Vertical Geophone 10Hz Operating Temperature Range -40℃-100℃
Product Details:
Place of Origin: CHINA
Brand Name: EGL
Model Number: GS-32CT Geophone 10Hz
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 work days
Payment Terms: Western Union, T/T,PayPal
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Natural Frequency ( Hz ): 10Hz ± 2.5% Coil Resistance(Ω): 395Ω ± 2.5%
Open Circuit Damping: 0.316 ± 2.5% Damping With Shunt Resistor: 0.7 ± 2.5%
Open Circuit Intrinsic Voltage Sensitivity( V/m/s ): 27.5 V/m/s ± 2.5% Sensitivity With Shunt Resistor ( V/m/s ): 19.7 V/m/s ± 2.5%
Damping Calibration-Shunt Resistance (Ω): 1000Ω Harmonic Distortion( % ): <0.1%
Typical Spurious Frequency (Hz ): >250Hz Moving Mass ( G ): 11.2g
Typical Case To Coil Motion P-p ( Mm ): 1.5mm Allowable Tilt: 10º
Operating Temperature Range ( ℃ ): -40℃ TO +100℃ Height ( Mm ): 33.5mm
Diameter ( Mm ): 25.4mm Weight ( G ): 86g
Warranty Period: 3 Years
High Light:

seismic geophone element

,

gs 20dx geophone

GS-32CT Geophone 10Hz



The high-precision geophone has advanced design, high false frequency and excellent anti-interference. The tolerance of each parameter is controlled within ±2.5%, the distortion is less than ≤0.1%, the performance is stable, the accuracy is high, and the signal is high. The collection is rich and accurate, and is suitable for all kinds of accurate seismic exploration. All parts are processed by precision machining, and the production process is mature and stable.





Type EG-10-III (GS-32CT Geophone)
Natural Frequency ( Hz ) 10Hz ± 2.5%
Coil resistance(Ω) 395Ω ± 2.5%
Open Circuit Damping 0.316 ± 2.5%
Damping With Shunt Resistor 0.7 ± 2.5%
Open Circuit Intrinsic Voltage Sensitivity( v/m/s ) 27.5 v/m/s ± 2.5%
Sensitivity With Shunt Resistor ( v/m/s ) 19.7 v/m/s ± 2.5%
Damping Calibration-Shunt Resistance (Ω) 1000Ω
Harmonic distortion( % ) <0.1%
Typical Spurious Frequency (Hz ) >250Hz
Moving Mass ( g ) 11.2g
Typical case to coil motion p-p ( mm ) 1.5mm
Allowable Tilt 10º
Operating Temperature Range ( ℃ ) -40℃ TO +100℃
Height ( mm ) 33.5mm
Diameter ( mm ) 25.4mm
Weight ( g ) 86g
Warranty Period 3 years



All parameters specified here in are rated at a temperature 20℃±2℃ .



GS-32CT Vertical Geophone 10Hz Operating Temperature Range -40℃-100℃ 0

GS-32CT Vertical Geophone 10Hz Operating Temperature Range -40℃-100℃ 1GS-32CT Vertical Geophone 10Hz Operating Temperature Range -40℃-100℃ 2GS-32CT Vertical Geophone 10Hz Operating Temperature Range -40℃-100℃ 3
