Single Seismic Geophone 4.5Hz Horizontal Waterproof Land Case Spike 75mm

Single Seismic Geophone 4.5Hz Horizontal Waterproof Land Case Spike 75mm

  • Single Seismic Geophone 4.5Hz Horizontal Waterproof Land Case Spike 75mm
  • Single Seismic Geophone 4.5Hz Horizontal Waterproof Land Case Spike 75mm
  • Single Seismic Geophone 4.5Hz Horizontal Waterproof Land Case Spike 75mm
Single Seismic Geophone 4.5Hz Horizontal Waterproof Land Case Spike 75mm
Product Details:
Place of Origin: China
Brand Name: EGL
Certification: ISO9001
Model Number: Single Geophone 4.5Hz Horizontal
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 10000sets/month
Contact Now
Detailed Product Description
Natural Frequency: 4.5Hz±10% Geophone Case: Horizontal Waterproof Land Case
Spike: 75mm Lead-in Cable: 1 M
Cable O.D: 4.6mm Connector Type: KCK Male Connector
High Light:

horizontal seismic geophone

,

seismic geophone tester

Seismic Geophone 4.5Hz Horizontal​ with KCK Male connector (408 connector)



Type Single Geophone 4.5Hz
Geophone Direction Vertical Direction / Horizontal Direction
Geophone Type 4.5Hz
Geophone Case Waterproof Land Case
Spike Steel Spike length75mm
Lead-in

Standard:1mlead-in with O.D.4.6mm

Custom Outer Diameter / Lead Distance available

Connector Type

*Mueller Clips

*Split Spring Clip

*KCK Connector( Male or Female / Push Fit or Lock Ring Type)

*Kooter Connector( Male or Female /KCL male or KCL female or KC2L-4 Dual )

*Other Connector Type available

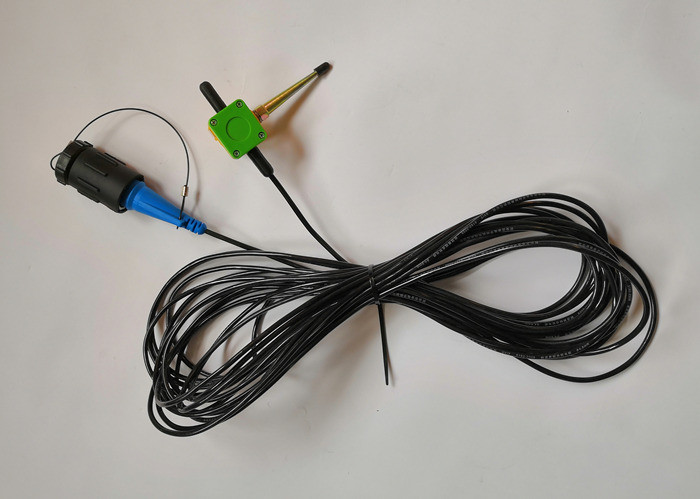

Single geophone 4.5Hz Horizontal in land case with spike 75mm, with 1m leader cable,with one D-Loop , terminated with KCK Male connector (408 connector) .
