Hydrophone 10Hz (YH-25-11A) with 1meter cable and terminated with 408 Male Connector

1 set
MOQ
Negotiable
Price
Hydrophone 10Hz (YH-25-11A) with 1meter cable and terminated with 408 Male Connector
Features Gallery Product Description Request A Quote
Features
Specifications
Natural Frequency: 10 Hz (± 10%)
D C Resistance(DCR): 160 Ohm (±10%)
Damping: 0.7(±10%)
Voltage Sensitivity: 11V/bar±1.5dB
Working Depth: 0.3-100m
Operation   Temperature: 0°C --- +35°C
High Light:

sensibility hydrophone cable

,

transition zone sensor

Basic Infomation
Place of Origin: China
Brand Name: EGL
Certification: ISO9001
Model Number: Hydrophone YH-25-11A
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 1000set/month
Product Description

YH-25-11A Hydrophone 10Hz terminated with KCK Screw Fit Male Connector



Hydrophone of YH-25-11A is a piezoelectric sensor for prospecting purpose in swamp,river and shallow sea of transition zone. The product is small in size, stable, high sense for output and non-directional receiving, its high temperature injection molding seal makes it better for water proof, its tail suspension wire’s design makes it more suitable for field wiring.

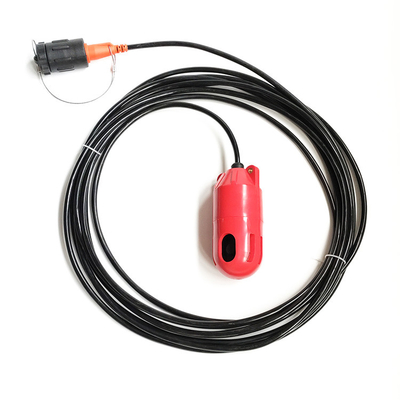

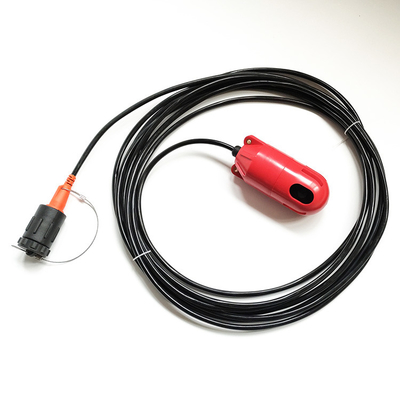

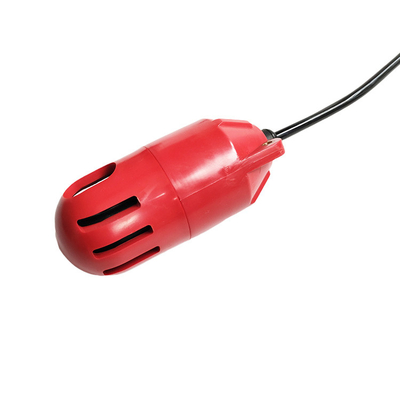

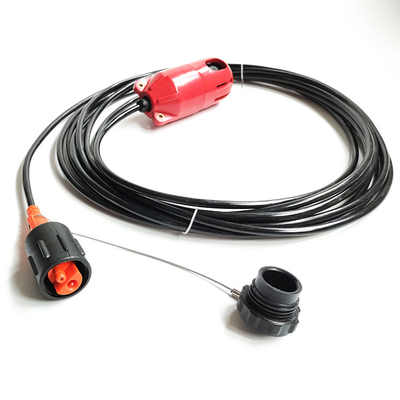

YH-25-11A Hydrophone 10Hz with red case ,with 1meter cable and terminated with KCK Screw Fit Male Connector connector .

Hydrophone 10Hz (YH-25-11A) with 1meter cable and terminated with 408 Male Connector 0



Type Hydrophone YH-25-11A
Natural Frequency 10 Hz (± 10%)
D C Resistance(DCR) 160 ohm (±10%)
Damping 0.7(±10%)
Voltage Sensitivity 11V/bar±1.5dB
Test @ 25°C
Working Depth 0.3-100m
Operation Temperature 0°C / +35°C
Cable Length As per client’s requirements
Connector Type As per client’s requirements
Unit Length 158mm( 6.22 in )with case
Unit Diameter 60mm ( 2.36 in ) with case
Weight 530g
Compaticity Can be interchanged with MP-25,P-44A and LS-2512.



Hydrophone 10Hz (YH-25-11A) with 1meter cable and terminated with 408 Male Connector 1
