YH-25-14A Hydrophone 10Hz terminated with KCK Screw Fit Male Connector connector
Hydrophone of YH-25-14A is a piezoelectric sensor for prospecting purpose in swamp,river and shallow sea of transition zone. The product is small in size, stable, high sense for output and non-directional receiving, its high temperature injection molding seal makes it better for water proof, its tail suspension wire’s design makes it more suitable for field wiring.

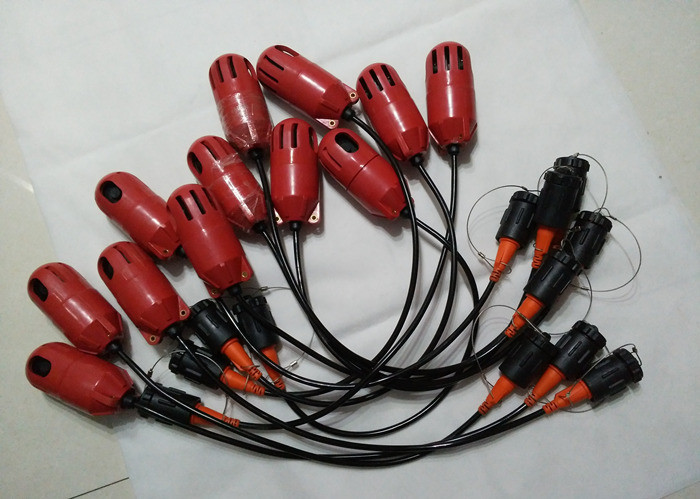

YH-25-14A Hydrophone 10Hz with red case ,with 1meter cable and terminated with KCK Screw Fit Male Connector connector .
| Type | Hydrophone YH-25-14A |
| Natural Frequency | 10 Hz (± 10%) |
| D C Resistance(DCR) | 160 ohm (±10%) |
| Damping | 0.7(±10%) |
| Voltage Sensitivity | 14V/bar±1.5dB |
| Test @ | 25°C |
| Working Depth | 0.3-100m |
| Operation Temperature | 0°C / +35°C |
| Cable Length | As per client’s requirements |
| Connector Type | As per client’s requirements |
| Unit Length | 158mm( 6.22 in )with case |
| Unit Diameter | 60mm ( 2.36 in ) with case |
| Weight | 530g |
| Compaticity | Can be interchanged with MP-25,P-44A and LS-2512. |
