Single 5Hz Seismic Geophone Waterproof Land Case
5Hz Seismic Geophone Introduction
The 5Hz Seismic Geophone (EG-5-HS-II) is used to receive the weak deep and low frequency signal. This kind of geophone has following characters: Low frequency, Low distortion and high sensitivity.
It’s suitable for field single point data acquisition.
Features of 5Hz Seismic Geophone :
Lower Frequency: 5Hz
Higher Sensitivity: 98V/m/s
Lower distortion: ≤0.1%

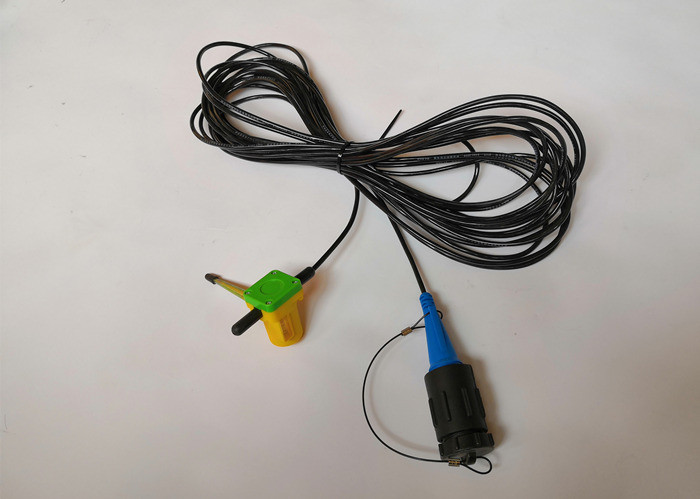

Single geophone 5Hz (EG-5-HS-II) Vertical in Waterproof Land Case with 75 mm steel spike, with Lead-in cable 1 M and terminated with KCK Screw Fit Male Connector (408 connector).
Type | EG-5-HS-II |
Natural Frequency (Hz) | 5±7.5% |
Coil Resistance ( Ω ) | 1800 ±5% |
Damping coefficient | 0.7±5% |
Open circuit Sensitivity (v/m/s) | 98.0±5% |
Distortion (%) | ≤0.1 |
Spurious Frequency (HZ) | ≥250 |
Moving Mass (g) | 15.8 |
Typical Case To Coil Motion p-p (mm) | 2 |
Allowable Tilt | 10° |
Diameter (mm) | 27.3 |
Height (mm) | 33.5 |
Weight (g) | 105 |
Operating Temperature | -40℃- +80℃ |
Limited Warranty Period | 1 Year |
