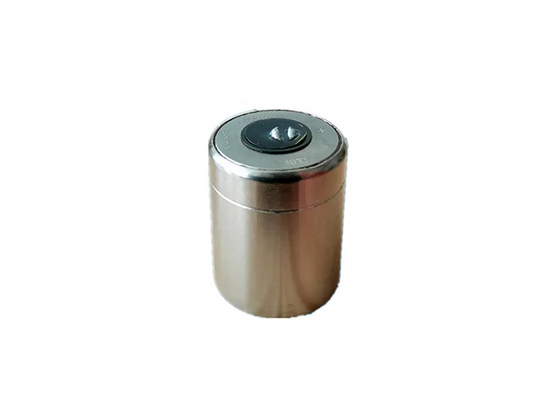

EG-15RN-ODH-2400 geophone is a kind of geophone which can work at omni-directional.
Omnidirectional high temperature geophones are used in petroleum exploration, well logging exploration, industrial vibration monitoring and other fields.
EG-15RN-ODH-2400 high temperature geophone has been tested at 240 ℃ for over 300 hours, continuously, at a temperature of 240 degree C with no signs of specification deviations.
- Any angle of 0 ~ 360° can be used;
- It has the characteristics of low damping, high sensitivity, small size and light weight;
- Sustainable use under -40°C ~ +240°C environment;
- Unique technology and process, the performance of the detector is more stable in high temperature environment.
Type | EG-15RN-ODH-2400 |
Natural Frequency ( Hz ) | 15Hz -5%/+15% |
Direction | 0 ~ 360° |
Coil Resistance (Ω) | 2400±5% |
Sensitivity ( v/m/s ) | 52 -15%/+5% V/m/s |
Damping | 0.57 -20%/+15% |
Distortion(%) | ≤0.7 |
Max.Motion (mm) | 3 |
Moving Mass(g) | 7.6 |
Diameter ( mm ) | 22.2mm |
Height ( mm ) | 26.5mm |
Weight ( g ) | 49g |
Temperature Range(℃) | -40℃ to +240℃ |
Warranty Period | 1 years |
