Product Details:
Place of Origin: China
Brand Name: EGL
Model Number: 1Hz
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 100set/month
Contact Now
Detailed Product Description
Nature Frequency: 1±10% Hz Working Direction: Vertical Or Horizontal
Damping: 0.36±20% Sensitivity(80 Hz)v/m/s: 200±10%
DC Resistance Ω: 3300±10% Distortion %: ≤0.2
Insulation Resistance MΩ: >50 Moving Mass G: 770
Max. Motion Mm(p-p): 6 Working Temperature ℃: -25~55
Dimensions Mm: φ65×106 Weight G: 1400
Case Dimension Mm: 75×75×166
High Light:

horizontal seismic geophone

,

seismic geophone tester



Type Geophone 1Hz
Working Direction Vertical or Horizontal
Nature Frequency Hz 1±10%
Damping 0.36±20%
Sensitivity(80 Hz)v/m/s 200±10%
DC Resistance Ω 3300±10%
Distortion % ≤0.2
Insulation Resistance MΩ >50
Moving Mass g 770
Max. Motion mm(p-p) 6
Working Temperature ℃ -25~55
Dimensions mm φ65×106
Weight g 1400
Case Dimension mm

Vertical:φ75×166

Horizontal:75×75×166

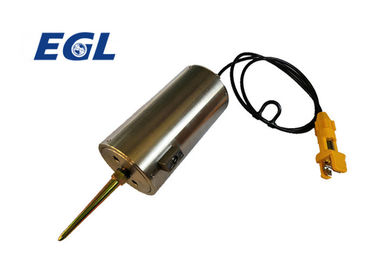

geophone 1Hz Vertical in land case with 1m leader cable and terminated with Split Spring Connector.

Low Frequency Horizontal Geophone , Digital Seismic Sensor OEM Service 0

Low Frequency Horizontal Geophone , Digital Seismic Sensor OEM Service 1

Low Frequency Horizontal Geophone , Digital Seismic Sensor OEM Service 2

Low Frequency Horizontal Geophone , Digital Seismic Sensor OEM Service 3



geophone 1Hz Horizontal in land case with 1m leader cable and terminated with Split Spring Connector.
