Product Details:
Place of Origin: China
Brand Name: EGL
Certification: ISO9001
Model Number: Geophone 40Hz Horizontal​
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 10000sets/month
Contact Now
Detailed Product Description
Natural Frequency: 40Hz±5% Geophone Case: Horizontal​ Waterproof Land Case
Spike: 75mm Lead-in Cable: 1 M
Cable O.D: 4.6mm Connector Type: KCK Connector
High Light:

seismic geophone tester

,

horizontal seismic sensor

Seismic Geophone 40Hz Horizontal​​ with KCK Male connector (408 connector)



Type Single Geophone 40Hz
Geophone Direction Vertical Direction / Horizontal Direction
Geophone Type 40Hz
Geophone Case Waterproof Land Case
Spike Steel Spike length75mm
Lead-in

Standard:1mlead-in with O.D.4.6mm

Custom Outer Diameter / Lead Distance available

Connector Type

*Mueller Clips

*Split Spring Clip

*KCK Connector( Male or Female / Push Fit or Lock Ring Type)

*Kooter Connector( Male or Female /KCL male or KCL female or KC2L-4 Dual )

*Other Connector Type available

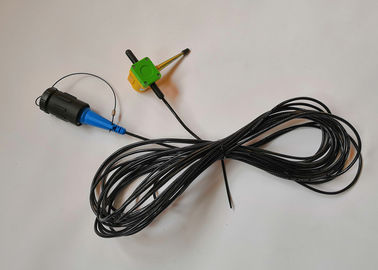

Single geophone 40Hz Horizontal​ in land case with spike 75mm, with 1m leader cable,terminated with KCK Male connector (408 connector).



Custom Horizontal Geophone , Seismic Geophone Tester Long Working Life 0



Type EG-40-II
Natural Frequency ( Hz ) 40 ± 5.0%
Coil resistance(Ω) 540 ± 5.0%
Open Circuit Damping 0.620 ± 5.0%
Damping With Shunt Resistor 0.648 ± 5.0%
Open Circuit Intrinsic Voltage Sensitivity( v/m/s ) 32.5 v/m/s ± 5.0%
Sensitivity With Shunt Resistor ( v/m/s ) 30.3 v/m/s ± 5.0%
Damping Calibration-Shunt Resistance(Ω) 7500
Harmonic distortion ( % ) <0.20%
Typical Spurious Frequency (Hz ) ≥300Hz
Moving Mass ( g ) 9.3g
Typical case to coil motion p-p ( mm ) 1.8mm
Allowable Tilt ≤20º
Operating Temperature Range ( ℃ ) -40℃ TO +100℃
Height ( mm ) 32
Diameter ( mm ) 26
Weight ( g ) 80
Warranty Period 3 years
